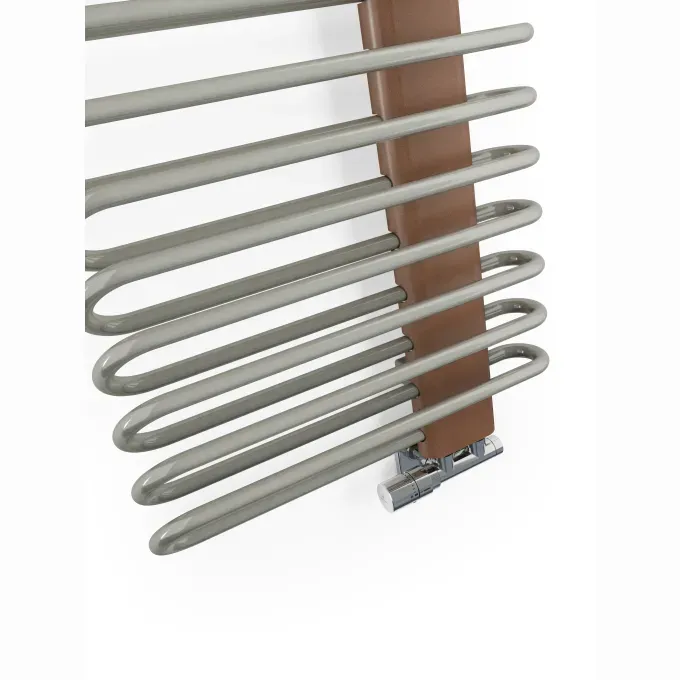

| A [mm] |
B [mm] |
C1 [mm] |
75/65/20oC [W] |
55/45/20oC [W] |
[W] |
D [mm] |
E [mm] |
F [mm] |
[dm3] |
[kg] |
Product Code |

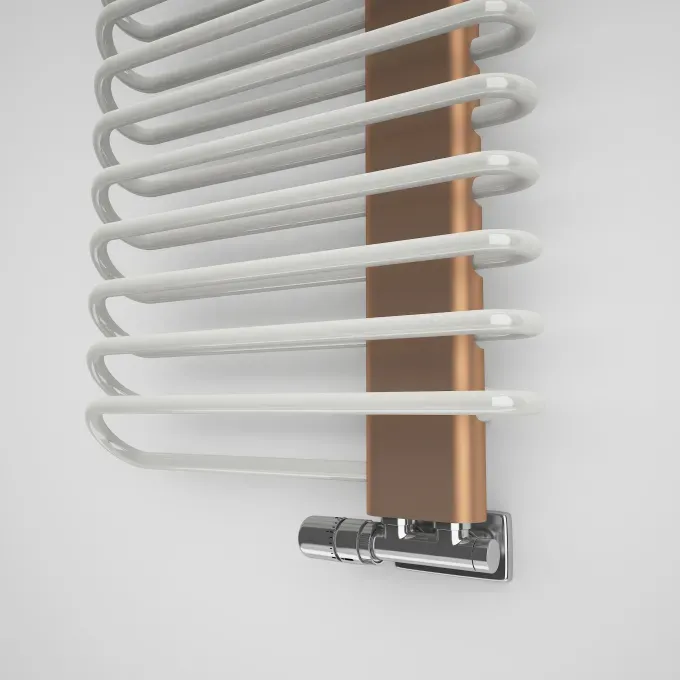

|---|---|---|---|---|---|---|---|---|---|---|---|
| paint | |||||||||||
| 780 | 400 | 50 | 365 | 196 | 400 | 50 | 600 | 90 | 2.85 | 11.51 | WGMIC078040 |
| 780 | 500 | 50 | 455 | 244 | 400 | 50 | 600 | 90 | 3.30 | 12.8 | WGMIC078050 |
| 780 | 600 | 50 | 533 | 286 | 600 | 50 | 600 | 90 | 3.75 | 14.1 | WGMIC078060 |
| 1200 | 400 | 50 | 580 | 310 | 600 | 50 | 1020 | 90 | 4.47 | 18.03 | WGMIC120040 |
| 1200 | 500 | 50 | 721 | 386 | 800 | 50 | 1020 | 90 | 5.19 | 20.07 | WGMIC120050 |
| 1200 | 600 | 50 | 845 | 452 | 800 | 50 | 1020 | 90 | 5.90 | 22.13 | WGMIC120060 |
| 1620 | 400 | 50 | 805 | 429 | 800 | 50 | 1440 | 90 | 6.11 | 24.59 | WGMIC162040 |
| 1620 | 500 | 50 | 1000 | 533 | 1000 | 50 | 1440 | 90 | 7.09 | 27.4 | WGMIC162050 |
| 1620 | 600 | 50 | 1172 | 624 | 1200 | 50 | 1440 | 90 | 8.07 | 30.2 | WGMIC162060 |
| plating | |||||||||||
| 780 | 400 | 50 | 256 | 131 | 300 | 50 | 600 | 90 | 2.85 | 11.23 | WGMIC078040 |
| 780 | 500 | 50 | 319 | 163 | 300 | 50 | 600 | 90 | 3.30 | 12.47 | WGMIC078050 |
| 780 | 600 | 50 | 374 | 191 | 400 | 50 | 600 | 90 | 3.75 | 13.71 | WGMIC078060 |
| 1200 | 400 | 50 | 406 | 208 | 400 | 50 | 1020 | 90 | 4.47 | 17.59 | WGMIC120040 |
| 1200 | 500 | 50 | 505 | 258 | 600 | 50 | 1020 | 90 | 5.19 | 19.55 | WGMIC120050 |
| 1200 | 600 | 50 | 592 | 302 | 600 | 50 | 1020 | 90 | 5.90 | 21.52 | WGMIC120060 |
| 1620 | 400 | 50 | 564 | 288 | 600 | 50 | 1440 | 90 | 6.11 | 23.99 | WGMIC162040 |
| 1620 | 500 | 50 | 700 | 357 | 800 | 50 | 1440 | 90 | 7.09 | 26.68 | WGMIC162050 |
| 1620 | 600 | 50 | 821 | 419 | 800 | 50 | 1440 | 90 | 8.07 | 29.37 | WGMIC162060 |
| A [mm] |
B [mm] |
C1 [mm] |
[W] |
D [mm] |
E [mm] |
F [mm] |
[dm3] |
[kg] |
Product Code |
|---|---|---|---|---|---|---|---|---|---|
| paint | |||||||||
| 1200 | 400 | 50 | 600 | 50 | 1020 | 90 | 4.46 | 16.96 | WLMIC120040 |
| 1200 | 500 | 50 | 800 | 50 | 1020 | 90 | 5.18 | 19.6 | WLMIC120050 |
| 1200 | 600 | 50 | 800 | 50 | 1020 | 90 | 5.90 | 22.23 | WLMIC120060 |
| 1620 | 400 | 50 | 800 | 50 | 1440 | 90 | 6.10 | 23.13 | WLMIC162040 |
| 1620 | 500 | 50 | 1000 | 50 | 1440 | 90 | 7.08 | 26.73 | WLMIC162050 |
| 1620 | 600 | 50 | 1200 | 50 | 1440 | 90 | 8.06 | 30.33 | WLMIC162060 |
| Galvanic coating | |||||||||
| 1200 | 400 | 50 | 400 | 50 | 1020 | 90 | 4.46 | 16.52 | WLMIC120040 |
| 1200 | 500 | 50 | 600 | 50 | 1020 | 90 | 5.18 | 19.08 | WLMIC120050 |
| 1200 | 600 | 50 | 600 | 50 | 1020 | 90 | 5.90 | 21.62 | WLMIC120060 |
| 1620 | 400 | 50 | 600 | 50 | 1440 | 90 | 6.10 | 22.53 | WLMIC162040 |
| 1620 | 500 | 50 | 800 | 50 | 1440 | 90 | 7.08 | 26.01 | WLMIC162050 |
| 1620 | 600 | 50 | 800 | 50 | 1440 | 90 | 8.06 | 29.5 | WLMIC162060 |
A – înălțime, B – lățime, C1–C5 – distanță de conectare, D – distanță de montare orizontală, E – distanță de montare verticală, F – distanță de la axa inferioară de montare până la marginea inferioară a colectorului
