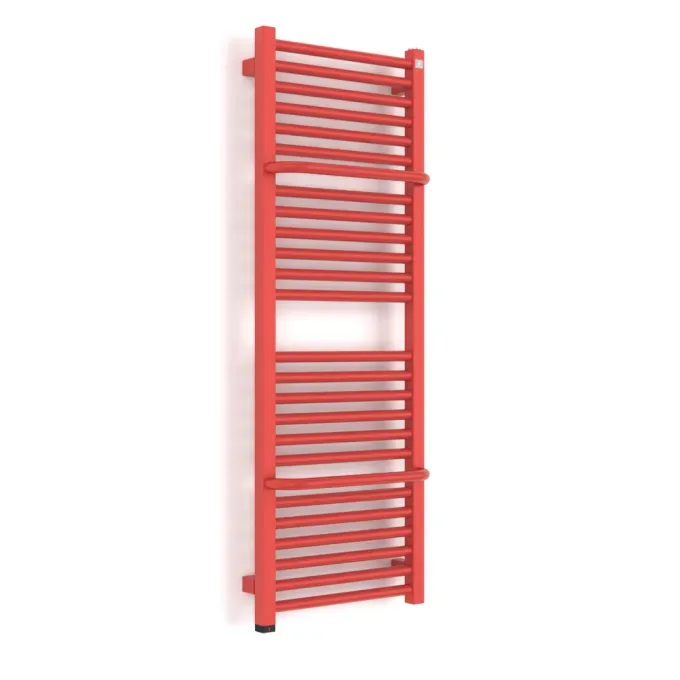

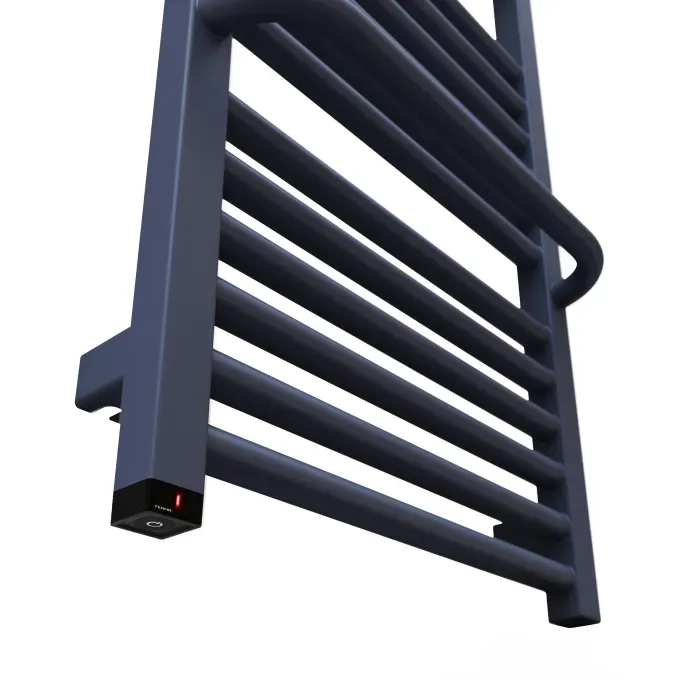

| A [mm] |
B [mm] |
[W] |
D [mm] |
E [mm] |
F [mm] |
[dm3] |
[kg] |
Product Code |
|---|---|---|---|---|---|---|---|---|
| paint | ||||||||
| 820 | 300 | 300 | 270 | 680 | 70 | 2.47 | 7.1 | WWLIE082030 |
| 820 | 400 | 300 | 370 | 680 | 70 | 3.01 | 8.8 | WWLIE082040 |
| 820 | 500 | 400 | 470 | 680 | 70 | 3.54 | 10.4 | WWLIE082050 |
| 820 | 600 | 400 | 570 | 680 | 70 | 4.08 | 12.1 | WWLIE082060 |
| 820 | 700 | 600 | 670 | 680 | 70 | 4.62 | 13.7 | WWLIE082070 |
| 1140 | 300 | 400 | 270 | 1000 | 70 | 3.51 | 10.1 | WWLIE114030 |
| 1140 | 400 | 400 | 370 | 1000 | 70 | 4.28 | 12.4 | WWLIE114040 |
| 1140 | 500 | 600 | 470 | 1000 | 70 | 5.06 | 14.8 | WWLIE114050 |
| 1140 | 600 | 800 | 570 | 1000 | 70 | 5.84 | 17.2 | WWLIE114060 |
| 1140 | 700 | 800 | 670 | 1000 | 70 | 6.61 | 19.5 | WWLIE114070 |
| 1460 | 300 | 400 | 270 | 1320 | 70 | 4.60 | 13.2 | WWLIE146030 |
| 1460 | 400 | 600 | 370 | 1320 | 70 | 5.61 | 16.2 | WWLIE146040 |
| 1460 | 500 | 800 | 470 | 1320 | 70 | 6.63 | 19.3 | WWLIE146050 |
| 1460 | 600 | 800 | 570 | 1320 | 70 | 7.64 | 22.4 | WWLIE146060 |
| 1460 | 700 | 1000 | 670 | 1320 | 70 | 8.66 | 25.5 | WWLIE146070 |
| 1700 | 300 | 600 | 270 | 1560 | 70 | 5.40 | 15.4 | WWLIE170030 |
| 1700 | 400 | 800 | 370 | 1560 | 70 | 6.60 | 19.1 | WWLIE170040 |
| 1700 | 500 | 800 | 470 | 1560 | 70 | 7.79 | 22.7 | WWLIE170050 |
| 1700 | 600 | 1000 | 570 | 1560 | 70 | 8.99 | 26.3 | WWLIE170060 |
| Galvanic coating | ||||||||
| 820 | 300 | 200 | 270 | 680 | 70 | 2.47 | 6.9 | WWLIE082030 |
| 820 | 400 | 200 | 370 | 680 | 70 | 3.01 | 8.5 | WWLIE082040 |
| 820 | 500 | 300 | 470 | 680 | 70 | 3.54 | 10.1 | WWLIE082050 |
| 820 | 600 | 400 | 570 | 680 | 70 | 4.08 | 11.7 | WWLIE082060 |
| 820 | 700 | 400 | 670 | 680 | 70 | 4.62 | 13.3 | WWLIE082070 |
| 1140 | 300 | 300 | 270 | 1000 | 70 | 3.51 | 9.8 | WWLIE114030 |
| 1140 | 400 | 300 | 370 | 1000 | 70 | 4.28 | 12.1 | WWLIE114040 |
| 1140 | 500 | 400 | 470 | 1000 | 70 | 5.06 | 14.4 | WWLIE114050 |
| 1140 | 600 | 400 | 570 | 1000 | 70 | 5.84 | 16.7 | WWLIE114060 |
| 1140 | 700 | 600 | 670 | 1000 | 70 | 6.61 | 19.0 | WWLIE114070 |
| 1460 | 300 | 300 | 270 | 1320 | 70 | 4.60 | 12.8 | WWLIE146030 |
| 1460 | 400 | 400 | 370 | 1320 | 70 | 5.61 | 15.8 | WWLIE146040 |
| 1460 | 500 | 600 | 470 | 1320 | 70 | 6.63 | 18.8 | WWLIE146050 |
| 1460 | 600 | 600 | 570 | 1320 | 70 | 7.64 | 21.8 | WWLIE146060 |
| 1460 | 700 | 800 | 670 | 1320 | 70 | 8.66 | 24.8 | WWLIE146070 |
| 1700 | 300 | 400 | 270 | 1560 | 70 | 5.40 | 15.0 | WWLIE170030 |
| 1700 | 400 | 600 | 370 | 1560 | 70 | 6.60 | 18.5 | WWLIE170040 |
| 1700 | 500 | 600 | 470 | 1560 | 70 | 7.79 | 22.1 | WWLIE170050 |
| 1700 | 600 | 800 | 570 | 1560 | 70 | 8.99 | 25.6 | WWLIE170060 |
| 1700 | 700 | 800 | 670 | 1560 | 70 | 10.18 | 29.1 | WWLIE170070 |
A – înălțime, B – lățime, C1–C5 – distanță de conectare, D – distanță de montare orizontală, E – distanță de montare verticală, F – distanță de la axa inferioară de montare până la marginea inferioară a colectorului
