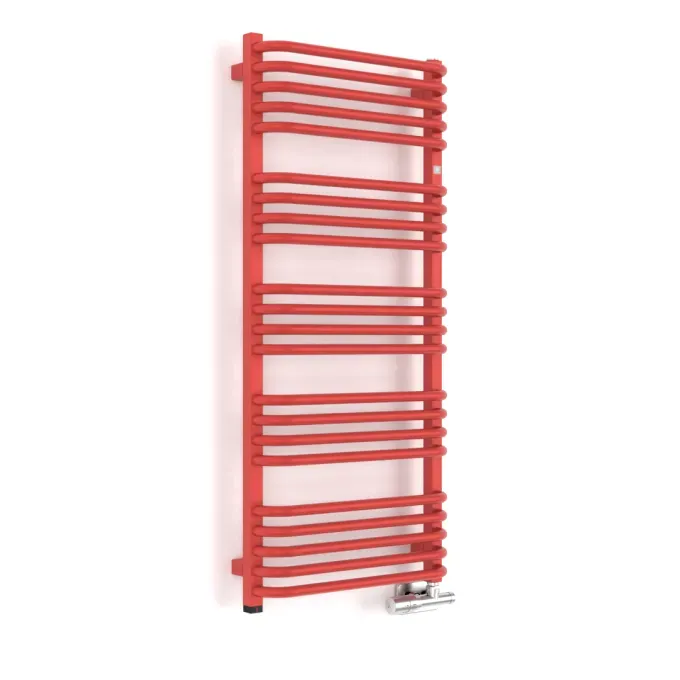

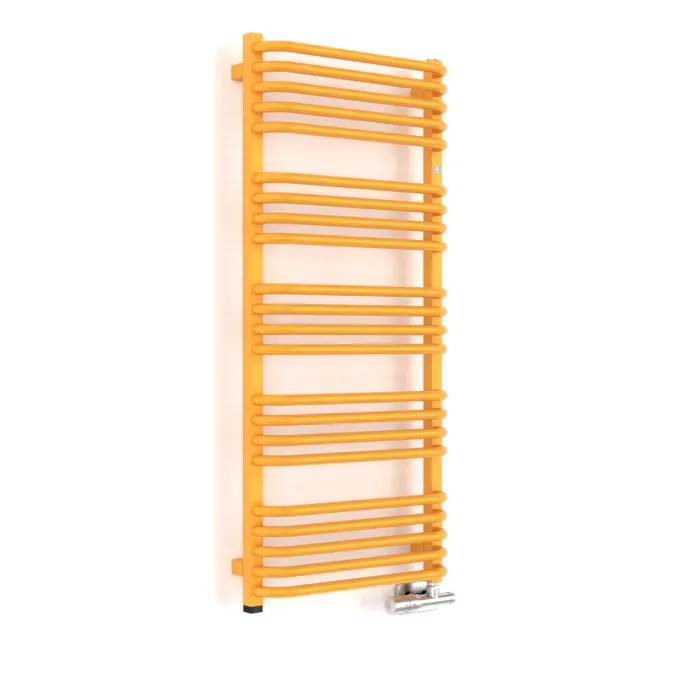

| A [mm] |
B [mm] |
[W] |
D [mm] |
E [mm] |
F [mm] |
[dm3] |
[kg] |
Product Code |
|---|---|---|---|---|---|---|---|---|
| paint | ||||||||
| 760 | 300 | 300 | 270 | 620 | 70 | 2.39 | 7.09 | WWALN076030 |
| 760 | 400 | 300 | 370 | 620 | 70 | 2.79 | 8.34 | WWALN076040 |
| 760 | 500 | 400 | 470 | 620 | 70 | 3.19 | 9.6 | WWALN076050 |
| 760 | 600 | 600 | 570 | 620 | 70 | 3.58 | 10.85 | WWALN076060 |
| 1140 | 300 | 400 | 270 | 1000 | 70 | 3.72 | 10.87 | WWALN114030 |
| 1140 | 400 | 400 | 370 | 1000 | 70 | 4.34 | 12.85 | WWALN114040 |
| 1140 | 500 | 600 | 470 | 1000 | 70 | 4.97 | 14.83 | WWALN114050 |
| 1140 | 600 | 800 | 570 | 1000 | 70 | 5.59 | 16.8 | WWALN114060 |
| 1580 | 500 | 800 | 470 | 1440 | 70 | 6.83 | 20.27 | WWALN158050 |
| 1580 | 600 | 1000 | 570 | 1440 | 70 | 7.68 | 22.97 | WWALN158060 |
| 1580 | 700 | 1000 | 670 | 1440 | 70 | 8.53 | 25.66 | WWALN158070 |
| plating | ||||||||
| 760 | 300 | 200 | 270 | 620 | 70 | 2.39 | 6.89 | WWALN076030 |
| 760 | 400 | 200 | 370 | 620 | 70 | 2.79 | 8.11 | WWALN076040 |
| 760 | 500 | 300 | 470 | 620 | 70 | 3.19 | 9.32 | WWALN076050 |
| 760 | 600 | 400 | 570 | 620 | 70 | 3.58 | 10.54 | WWALN076060 |
| 1140 | 300 | 300 | 270 | 1000 | 70 | 3.72 | 10.57 | WWALN114030 |
| 1140 | 400 | 400 | 370 | 1000 | 70 | 4.34 | 12.49 | WWALN114040 |
| 1140 | 500 | 400 | 470 | 1000 | 70 | 4.97 | 14.41 | WWALN114050 |
| 1140 | 600 | 600 | 570 | 1000 | 70 | 5.59 | 16.32 | WWALN114060 |
| 1580 | 500 | 600 | 470 | 1440 | 70 | 6.83 | 19.7 | WWALN158050 |
| 1580 | 600 | 600 | 570 | 1440 | 70 | 7.68 | 22.31 | WWALN158060 |
| 1580 | 700 | 800 | 670 | 1440 | 70 | 8.53 | 24.92 | WWALN158070 |
A – înălțime, B – lățime, C1–C5 – distanță de conectare, D – distanță de montare orizontală, E – distanță de montare verticală, F – distanță de la axa inferioară de montare până la marginea inferioară a colectorului
