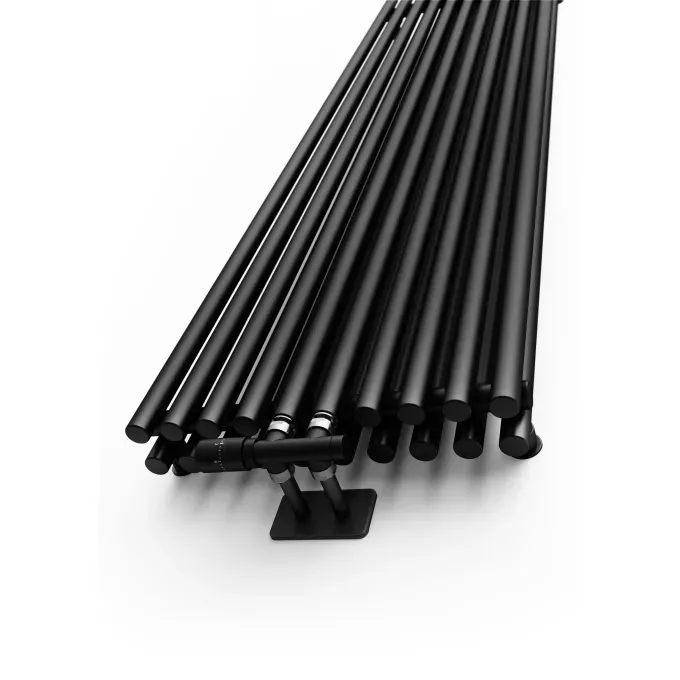

| A [mm] |
B [mm] |
C1[mm] | C2[mm] | C3[mm] | C4[mm] | M[W] | m[W] | [W] |
D[mm] | E[mm] | F[mm] | [dm3] |
[kg] |
Product Code |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 600 | 590 | 50 | 550 | 500 | 590 | 725 | 378 | 800 | 550 | 500 | 50 | 10.72 | 15.71 | WGTUV060059 |
| 600 | 790 | 50 | 750 | 500 | 790 | 967 | 504 | 1000 | 750 | 500 | 50 | 14.30 | 20.92 | WGTUV060079 |
| 600 | 990 | 50 | 950 | 500 | 990 | 1209 | 630 | 1200 | 950 | 500 | 50 | 17.87 | 26.13 | WGTUV060099 |
| 600 | 1190 | 50 | 1150 | 500 | 1190 | 1450 | 756 | 1500 | 1150 | 500 | 50 | 21.45 | 31.34 | WGTUV060119 |
| 600 | 1390 | 50 | 1350 | 500 | 1390 | 1693 | 883 | 1500 | 1350 | 500 | 50 | 25.03 | 36.55 | WGTUV060139 |
| 600 | 1590 | 50 | 1550 | 500 | 1590 | 1934 | 1008 | 2000 | 1550 | 500 | 50 | 28.61 | 41.76 | WGTUV060159 |
| 1800 | 190 | 50 | 150 | 1700 | 190 | 645 | 326 | 600 | 150 | 1700 | 50 | 10.17 | 14.54 | WGTUV180019 |
| 1800 | 290 | 50 | 250 | 1700 | 290 | 967 | 489 | 1000 | 250 | 1700 | 50 | 15.26 | 21.71 | WGTUV180029 |
| 1800 | 390 | 50 | 350 | 1700 | 390 | 1289 | 652 | 1200 | 350 | 1700 | 50 | 20.35 | 28.88 | WGTUV180039 |
| 1800 | 490 | 50 | 450 | 1700 | 490 | 1612 | 815 | 1500 | 450 | 1700 | 50 | 25.44 | 36.06 | WGTUV180049 |
| 1800 | 590 | 50 | 550 | 1700 | 590 | 1934 | 978 | 2000 | 550 | 1700 | 50 | 30.53 | 43.23 | WGTUV180059 |
| 1800 | 690 | 50 | 650 | 1700 | 690 | 2257 | 1141 | 2000 | 650 | 1700 | 50 | 35.62 | 50.40 | WGTUV180069 |
A – înălțime, B – lățime, C1–C5 – distanță de conectare, D – distanță de montare orizontală, E – distanță de montare verticală, F – distanță de la axa inferioară de montare până la marginea inferioară a colectorului
